Custom Electronics
Sensors to Solutions
Turning Your Ideas Into Products
What We Do
- Custom Products - over 30 years of experience
- Engineering - Real world problem solving expertise
- Manufacturing - extensive design expertise
- Engineering services and consutation
- Product improvement, modernization, redesign
- Cost reducing circuit redesign
- Retrofit, product modification, miniaturization
- Contact Us Today!
Why Do Business With Us?
- Personalized service
- Competitive prices
- Made in the USA
- In-house engineering and design services
- Specialists in low-to-medium volume
- Short runs: 100 - 1000 units per year
- Flexible and responsive philosophy
- Dedicated, long-term employees
- Financially strong private company

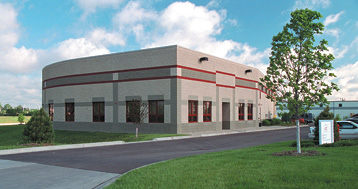

Facilities
- Located outside of Chicago, Illinois, USA
- 12,000 square foot building
- Owned not leased
- Custom built for electronics manufacturing
- Air conditioned & humidity controlled
Manufacturing Capabilities

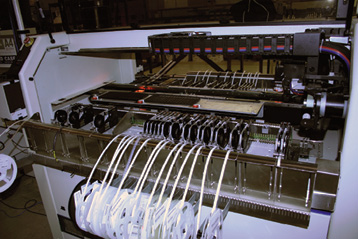

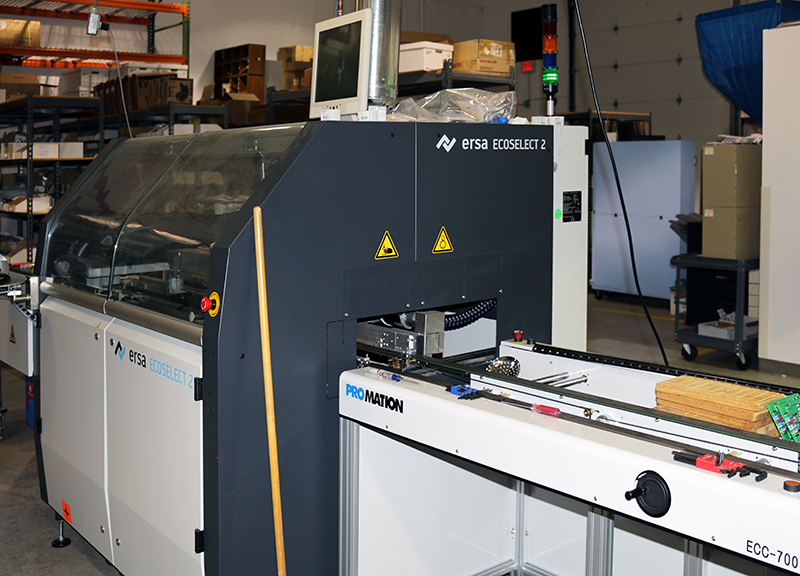

- Fully automated surface-mount technology (SMT)
- Layer count: 1 side through 12 layer
- Through-hole and/or mixed technology
- Lead-free RoHS capable
- Finish: SMOBC, HASL, white tin, ENIG gold
- Complex machining and in-house scoring
- Environmental encapsulation
- Slide lines for manual assembly, rework, inspection
Product Design Capabilities
- Printed circuit board layout
- Prototype circuit boards

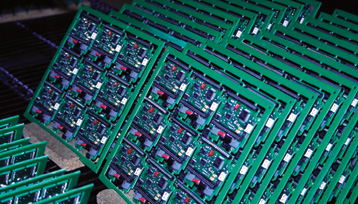

- Custom printed circuit board assemblies
- Mechanical design
- Design, assembly, production of prototypes
- Microprocessor programming & software
- Test and assembly fixture design
- Top quality pre-assembled electronics modules
- Subassemblies
- Product assembly and box build
- Product labels
- In-circuit testing
- Qualification testing
- Final product functional testing
- Documentation & product data sheets
- Finished product testing
Engineering and Design Software
- Altium Electronics Design Software
- SolidWorks
- AutoCAD
- 3D prototype printing
- Adobe CC: InDesign/Photoshop/Illustrator
- Quark Express
- Microsoft Publisher
- Digital product photography
Markets Served
- Industrial Automation
- Process Control
- Machinery Manufacturers
- Automotive Manufacturers
- Auto Racing and Motorsports
- Food and Dairy
- Aviation
- Oil & Gas
- Gas Utilities
Our Specialties
- Strain Gauge, Load Cell, Bridge Amplifiers
- Analog Signal Amplifiers and Converters
- Analog Signal Isolators
- Digital Pressure and Vacuum Gauges
- Digital Pressure Transmitters
- Temperature Measurement Products
- Flow Measurement and Control Products
- Valve Position Controllers
- Sensor Measurement Devices
- Process Control Equipment
- Power Measurement Products
- DC/AC/Servo Motor Drives
- Data Loggers
- Hand-Held Instrumentation
Inspection, Test, and Calibration Equipment
- Calibration equipment

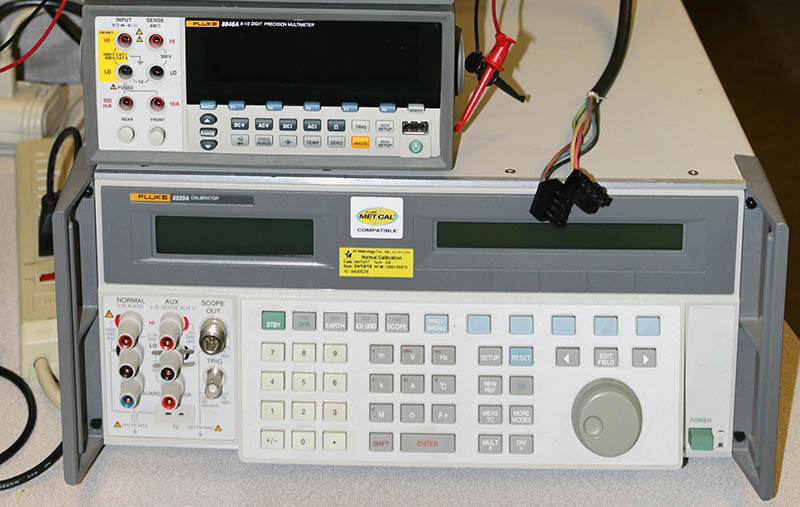

- Fluke 5520A

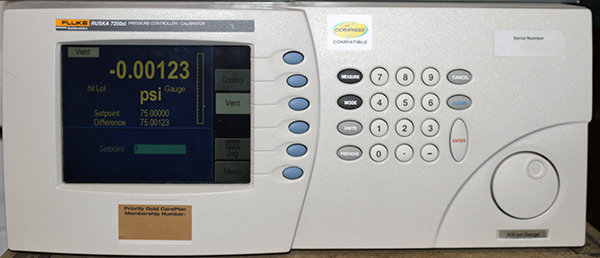

- Fluke/Ruska 7250xi

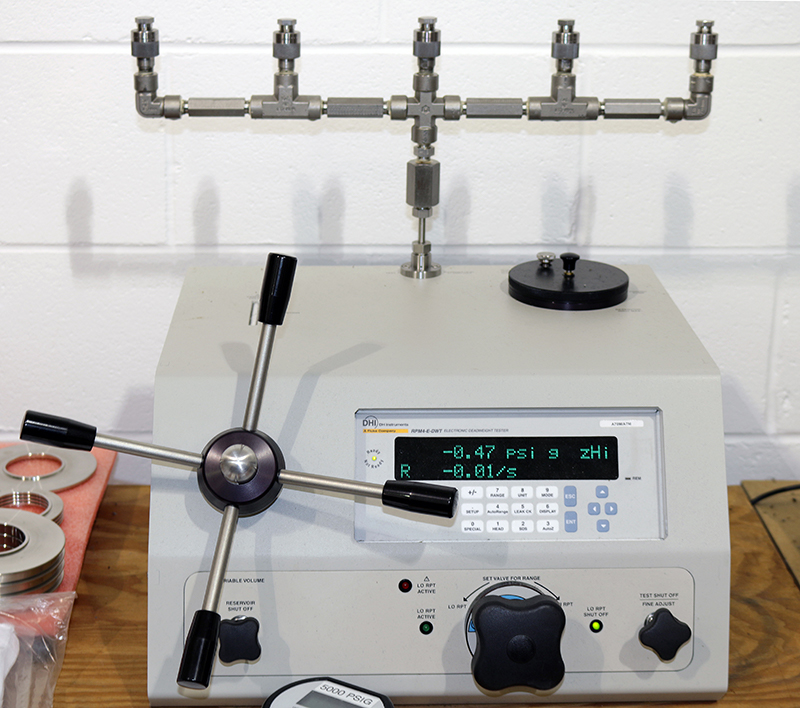

- Fluke/DH RPM4-E-DWT

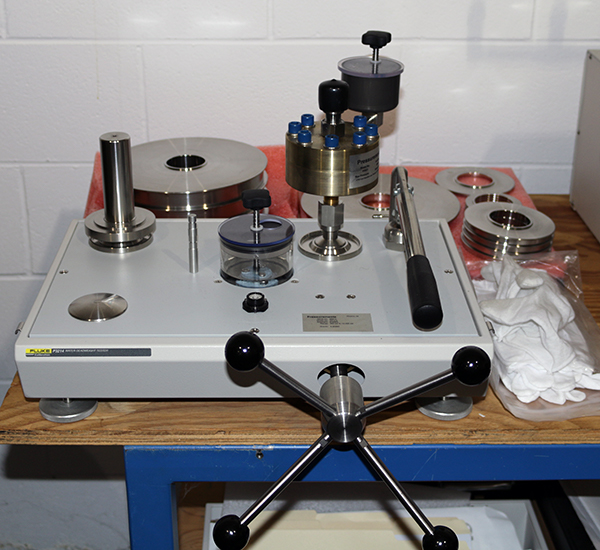

- Fluke P3214
- NIST traceable pressure calibration
- NIST traceable voltage & current calibration
- UL qualified
- FM approvals
- Manufactured to IPC-A-600 standards
Custom Product Examples

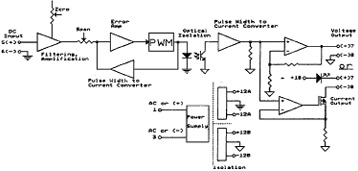

Custom signal isolators TX-4003 (74614) Potentiometer to DC Isolater/Converter100-900 Ohms to 0-20 mA Open Datasheet TX-4300 (74613) DC to DC Isolater0-20 mA to 0-20 mA Open Datasheet |
 |
Custom valve positioner/controller |
 |
| (link opens in a new window) |  |
Custom power supply for nuclear plant |
 |
OEM vacuum gauge for dairy industry |
 |
Custom power supply assembly |
 > |
High speed strain gauge signal conditioner for pill manufacturing |
 > |
